Monoimplant Rough and Rough B: Rough and Rough B
RBM-surface implants with a slim, less aggressive body for D1–D2 bone and healed sites; the Rough B variant has a bendable neck for parallelism.
Variants and codes
- Brand
- Monoimplant — One-piece implant system
- Family
- Rough and Rough B
- Type
- One-piece dental implants — RBM surface, bendable Rough B variant
- Category
- Implants
- Rough
- Ø3.0 · 3.2 · 3.7 · 4.1 · 4.9 mm, 6 – 17 mm
- Rough B
- Ø3.2 · 3.7 · 4.1 mm, 12 · 15 · 17 mm
- Rough B torque
- max. 45 Ncm
Characteristics
- 01
RBM surface
Calcium-phosphate blast media for a porous surface; facilitates osseointegration in cancellous bone.
- 02
Slim, less aggressive thread
For D1 and D2 bone types; capable of compressing the crestal bone where cancellous bone is present.
- 03
Narrow shape
Designed to bypass the mandibular nerve.
- 04

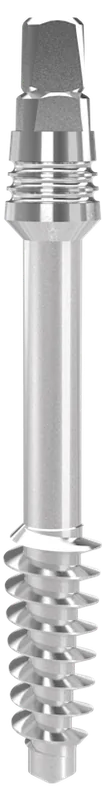

Rough B — bendable neck
Torque reduction by pre-compression with the congruent bone-expanding screw; safety head with predetermined breaking point and dual square (patent pending). Maximum insertion torque 45 Ncm.
- 05
One-piece body
No abutment screw: no screw loosening, fracture or micro-movement at an implant–abutment interface.
- 06
Bicortical anchorage
Fixated between entry and exit cortical plates for primary stability that does not depend on trabecular bone.
- 07
Titanium grade 5
Biocompatible grade 5 titanium; abutments can be trimmed and are compatible with welding (syncrystallization).
Codes
| Length | Ø3.0 | Ø3.2 | Ø3.7 | Ø4.1 | Ø4.9 |
|---|---|---|---|---|---|
| 6 mm | — | — | MR3706 | — | — |
| 8 mm | MR3008 | MR3208 | MR3708 | MR4108 | MR4908 |
| 10 mm | MR3010 | MR3210 | MR3710 | MR4110 | MR4910 |
| 12 mm | MR3012 | MR3212 | MR3712 | MR4112 | MR4912 |
| 15 mm | MR3015 | MR3215 | MR3715 | MR4115 | MR4915 |
| 17 mm | — | MR3217 | MR3717 | MR4117 | — |
Large-abutment Rough: MR41xx-LAb and MR49xx-LAb in 8, 10, 12 and 15 mm.
| Length | Ø3.2 | Ø3.7 | Ø4.1 |
|---|---|---|---|
| 12 mm | MR3212-B | MR3712-B | MR4112-B |
| 15 mm | MR3215-B | MR3715-B | MR4115-B |
| 17 mm | MR3217-B | MR3717-B | MR4117-B |
Folding brochure Rev05 (02.2026).
Prosthetic head
Normal or large abutment; impression with MIC / MIC-LAb components, digital workflow with MSB and MDLA. Rough B is placed only after pre-drilling and expansion with the bone-expanding screw.
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- Bone taps and lance drills →Bone tapping for Rough implants, compatible with all diameters (folding brochure).
- Impression components MIC / MIC-LAb →Transfer, burn-out cap and lab analog for normal and large abutments.
