Implant Swiss · Tissue-level dental implants
Implant Swiss Tissue Level: Tissue Level

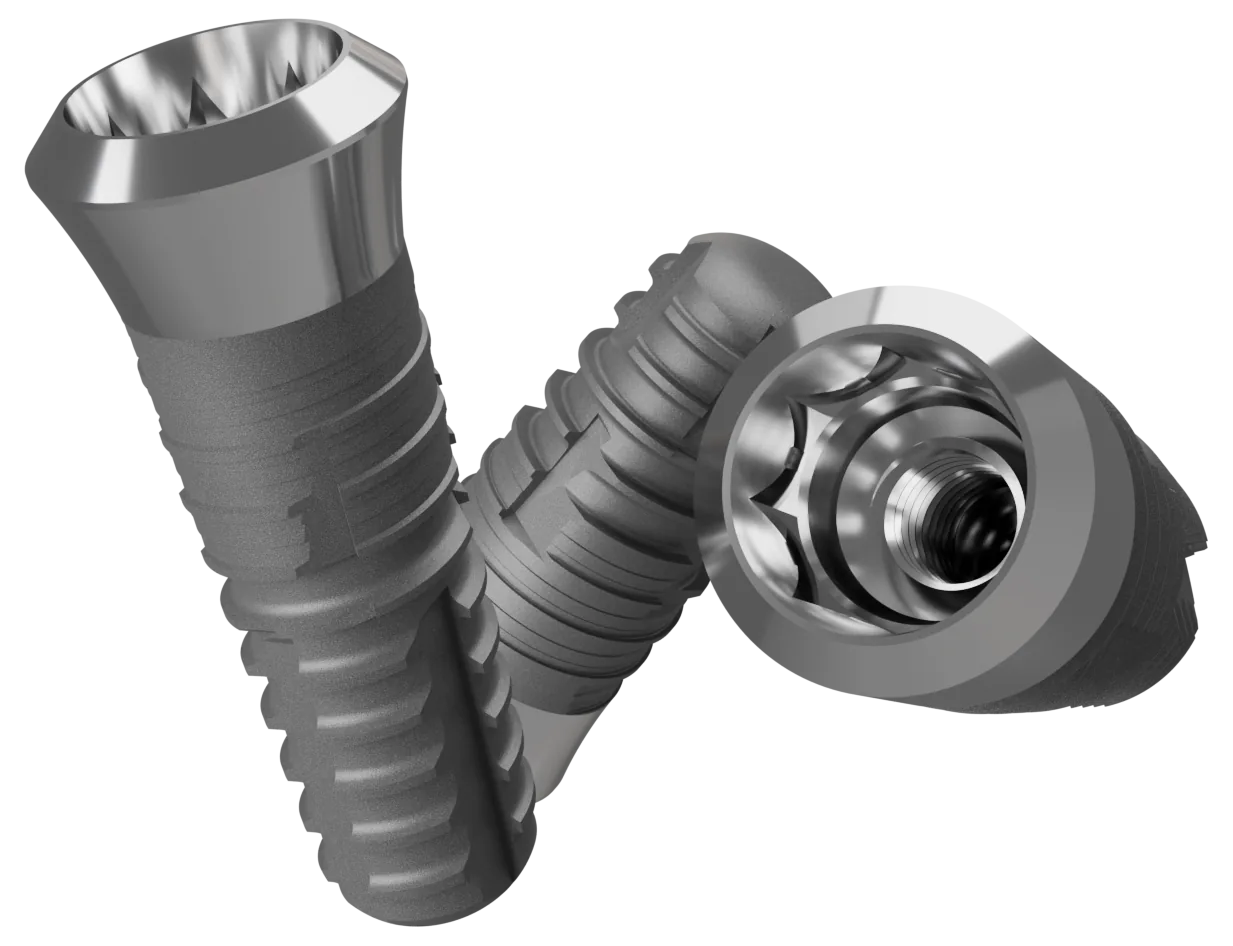

Two-piece implants with a 2.65 mm machined neck that places the implant–abutment interface above the bone.
Variants and codes
- Brand
- Implant Swiss — Two-piece implant system
- Family
- Tissue Level
- Type
- Tissue-level dental implants
- Category
- Implants
- Diameters
- Ø3.7 · 4.3 · 4.8 · 5.5 mm
- Lengths
- 8 · 10 · 12 · 14 mm
- Material
- Titanium grade 4
- Insertion torque
- 35 Ncm · Tissue Level driver
Features
Design features
- 01
Machined neck, 2.65 mm
Smooth neck at the implant–abutment interface for tissue preservation and bacterial isolation.
- 02
SRA surface
Sandblasted, double acid-etched body.
- 03
Self-cutting edge
Primary stability without transferring stress to the bone.
- 04
Hybrid design
Straight neck section, tapered apex.
Variants
Fixture codes
| Length | Ø3.7 | Ø4.3 | Ø4.8 | Ø5.5 |
|---|---|---|---|---|
| 8 mm | S-TFHR3708 | S-TFHR4308 | S-TFHR4808 | S-TWFHR5508 |
| 10 mm | S-TFHR3710 | S-TFHR4310 | S-TFHR4810 | S-TWFHR5510 |
| 12 mm | S-TFHR3712 | S-TFHR4312 | S-TFHR4812 | S-TWFHR5512 |
| 14 mm | S-TFHR3714 | S-TFHR4314 | S-TFHR4814 | — |
Implantswiss brochure Rev 10.2025.
Connection
Connection and prosthetics
Tissue Level fixtures take the Tissue Level prosthetic systems listed in the brochure: Solid, Couple (straight and angled), Octa, O-Ring and ImplaLock, plus Tissue Level scan bodies, digital analogs and premills.
Documents
Catalogs and documents
Compatible with
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- Tissue Level prosthetic systems →Solid, Couple, Octa, O-Ring and ImplaLock systems for Tissue Level (brochure Rev 10.2025, pp. 17–19).
- Digital components — Tissue Level →Scan body S-TSB (S-TWSB for Ø5.5), digital analog S-TFDLA (S-TWFDLA), premills S-TPA10/14/16 (S-TWPA…).
