Implant Swiss Prosthetic systems: Prosthetic systems
Couple, angled, solid, Octa, multi-unit, O-Ring and ImplaLock systems for Bone Level and Tissue Level fixtures.
Variants and codes
- Brand
- Implant Swiss — Two-piece implant system
- Family
- Prosthetic systems
- Type
- Abutments and prosthetic components
- Category
- Prosthetics
- Bone Level platforms
- Regular · Mini · Narrow
- Tissue Level systems
- Solid · Couple · Octa · O-Ring · ImplaLock
- Multi-unit material
- Titanium grade 5 ELI
Systems
- 01
Couple system

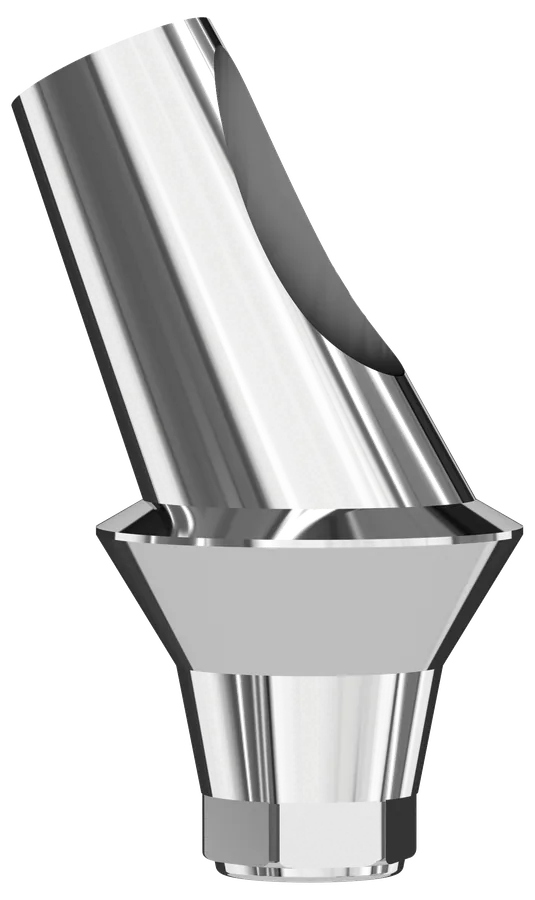

Cement-retained single crowns and bridges; couple and angled (15°, 25°) abutments with pick-up / transfer copings and lab analog.
- 02
Solid system

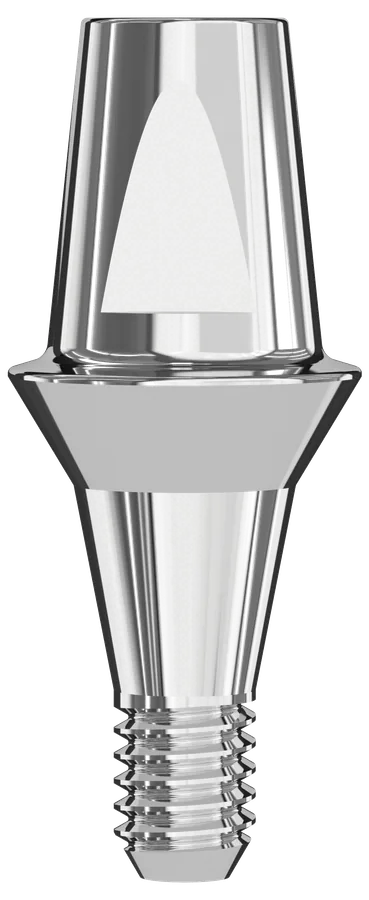

One-piece cement-retained abutment with cap, impression cap, plastic coping and lab analog.
- 03
Octa system
Octa and N-Octa abutments with transfer / pick-up copings, lab cylinders and healing caps.
- 04
Multi-unit system
Straight, 17° and 35° abutments for screw-retained bridges and the all-on-four technique.
- 05
O-Ring system
Ball-attachment retention for overdentures with retainers S-ORRo, S-ORR, S-ORRc and lab analog.
- 06
ImplaLock system
Low-profile attachment with inserter S-LRI, lab analog and healing component S-LMHt.
- 07
Bar system
Bar abutments, clips and housing for bar-retained overdentures.
- 08
Healing and temporary abutments
Standard and Mini healing abutments in several heights; temporary abutments for provisionals.
- 09
Abutment planning kit
Auxiliary kit for selecting the appropriate abutment type simply and accurately.
Dimensions and codes
| Platform | CH | GH options |
|---|---|---|
| Narrow | 7 mm | 2 · 3 · 4 · 5 mm |
| Mini | 7 mm | 1 · 2 · 3 · 4 · 5 mm |
| Regular | 7 mm | 1 · 2 · 3 · 4 · 5 mm |
| Platform | Angle | CH | GH options |
|---|---|---|---|
| Narrow | 15° | 7 mm | 2 · 3 · 4 · 5 mm |
| Mini | 15° · 25° | 7 mm | 1 · 2 · 3 · 4 · 5 mm |
| Regular | 15° · 25° | 7 mm | 1 · 2 · 3 · 4 · 5 mm |
| Type | GH | Regular | Mini |
|---|---|---|---|
| Straight | 0.5 · 1.5 · 2.5 · 3.5 · 4.5 mm | S-BMUA4805 · 4815 · 4825 · 4835 · 4845 | S-BMMUA4805 · 4815 · 4825 · 4835 · 4845 |
| Angled 17° | 1.0 · 2.5 · 3.5 mm | S-BMUA48171 · 48172 · 48173 | — |
| Angled 35° | 1.0 · 2.5 · 3.5 mm | S-BMUA48351 · 48352 · 48353 | — |
Multi-Unit leaflet 06.2020. Torque: abutment screw 25 Ncm, occlusal screw 20 Ncm; 1.2 hex driver.
| Component | Code |
|---|---|
| Healing cap | S-BMUAHCap |
| Impression coping, pick-up | S-BMUAICP |
| Plastic cylinder | S-MUAPICY |
| Titanium cylinder | S-MUATICy |
| Lab analog Ø4.8 × 14 mm | S-MUALA |
Platform compatibility
Bone Level: all abutments fit all fixture diameters except Ø3.3, which uses the Mini platform; Narrow Ø2.9 fixtures take the Narrow Ø3.5 components. Tissue Level: solid, couple, Octa, O-Ring and ImplaLock systems as listed in the brochure.
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- Bone Level fixtures →All Bone Level abutments fit every fixture diameter except Ø3.3 (Mini platform) — brochure Rev 10.2025.
- Tissue Level fixtures →Tissue Level solid, couple, Octa, O-Ring and ImplaLock systems — brochure pp. 17–19.
- Zygoma fixtures →45° and 55° multi-unit abutments with the multi-unit component set — Zygoma catalog.
