Implant Swiss Surgical kits: Surgical kits
Regular, short-implant, Zygoma, removal-help and osteotome kits with self-stoppered, colour-coded drills.
Variants and codes
- Brand
- Implant Swiss — Two-piece implant system
- Family
- Surgical kits
- Type
- Surgical kits and drills
- Category
- Surgical kits
Protocol
- 01
Self-stoppered drills
Depth stops prevent over-preparation during osteotomy and implant insertion.
- 02
200 – 300 rpm
Low drilling speed limits heat and mechanical trauma.
- 03
Bone harvesting
Below 50 rpm without irrigation, the drill channels collect autogenous bone for regenerative procedures.
- 04
Colour coding
A drill for each diameter and length available in the system, colour-coded by implant type.
Kit contents
| Instrument | Sizes / notes |
|---|---|
| Point drill · pilot drill · neck drill | start of the sequence |
| Lindemann drills | Ø2.2 · Ø2.8 |
| Surgical drills | Ø3.7 · Ø4.3 · Ø4.8 · Ø5.5, extra sharp, self-stoppered |
| Drill extension · depth gauge · parallel pins | — |
| Implant drivers | long and short, for Ø3.3 Bone and Tissue Level; narrow driver |
| Hex screw driver | adaptable to ratchet and handpiece |
| Torque-controlled ratchet | — |
Implantswiss brochure Rev 10.2025, pp. 8–9.
| Instrument | Sizes / notes |
|---|---|
| Bone Level drills and drivers | for 5 and 6 mm implants |
| Tissue Level drills and drivers | for 4, 5 and 6 mm implants |
| Pilot drill · point drill · hex screw drivers · torque-controlled ratchet | — |
Which kit for which implant
The regular kit covers Bone Level and Tissue Level fixtures of every diameter; the short implant kit is recommended for both Bone and Tissue Level short implants; the Zygoma kit is dedicated to zygomatic implants. The guided surgery system is documented in its own brochure.
Kits

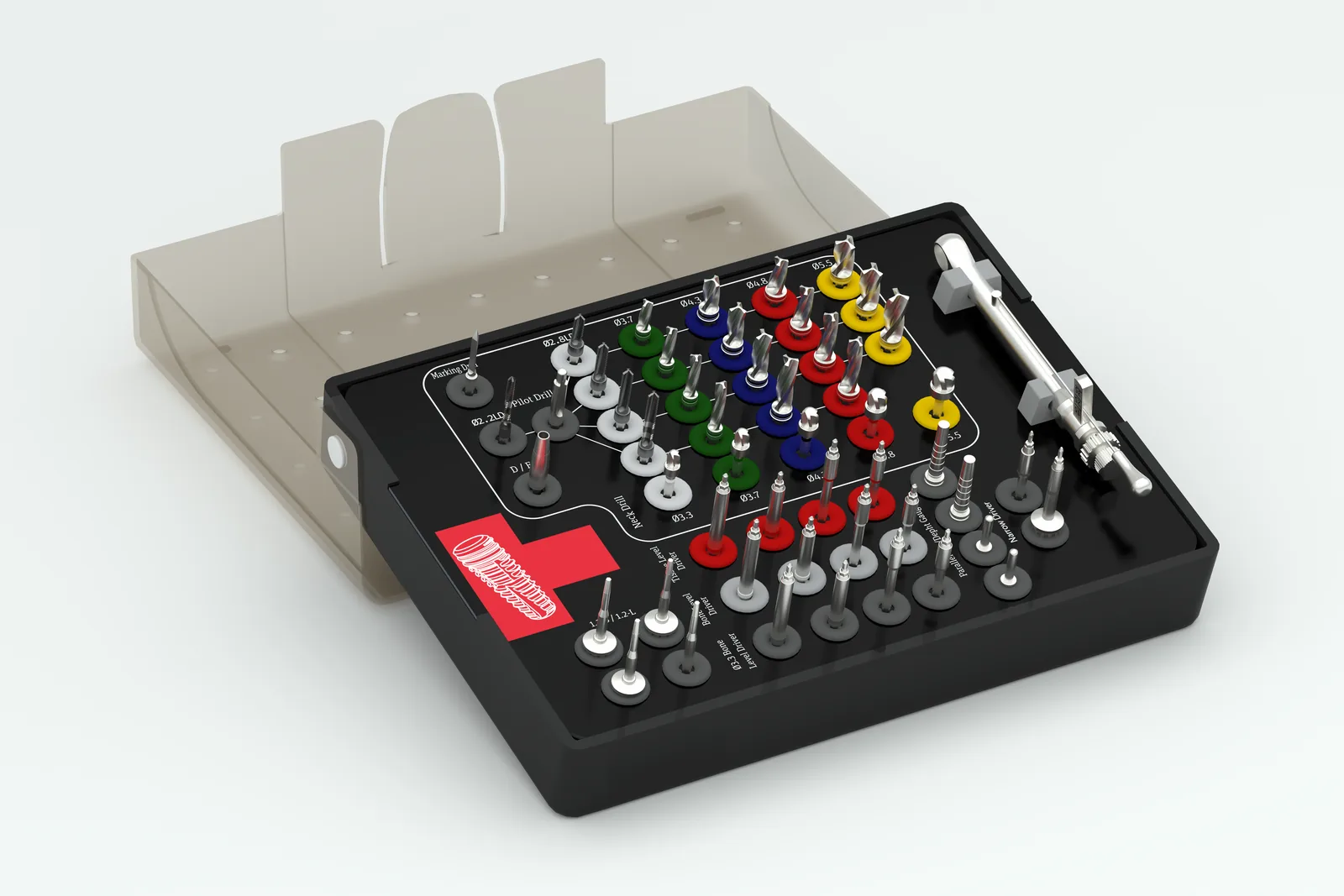

Regular surgical kit
Point, pilot, neck and Lindemann drills, surgical drills Ø2.2 to Ø5.5, parallel pins, depth gauge, drill extension, drivers and torque-controlled ratchet.

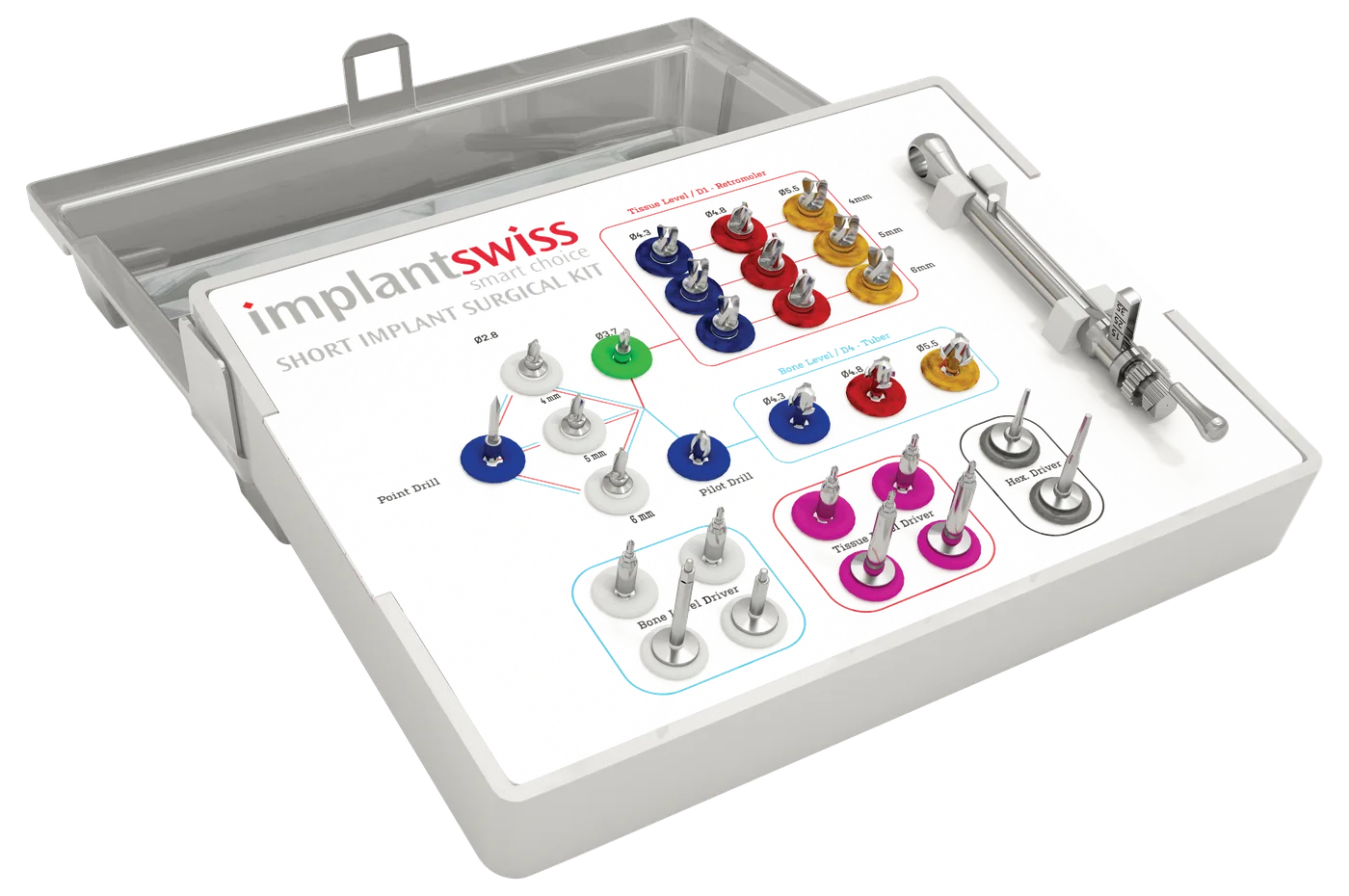

Short implant surgical kit
Bone Level and Tissue Level drills and drivers for 4, 5 and 6 mm implants.
Zygoma surgical kit
Zygoma point drill, diamond burr, Ø2.5 and Ø2.9 twist drills, depth gauges, drill guards and handle.
Removal help kit
Dedicated instrument set for component removal.
Osteotome and sinus lift kit
Osteotomes and sinus-lift instruments in a dedicated tray.
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- Bone Level and Tissue Level fixtures →Regular surgical kit — a drill for each diameter and length available in the system (brochure).
- Short implants →Short implant surgical kit, recommended for both Bone and Tissue Level short implants.
- Zygoma implants →Zygoma surgical kit (Zygoma catalog).
