Implant Swiss PACE: PACE
PACE by implantswiss: bone-level implants engineered for immediate protocols — Ø3.5 to Ø7.0, 6 to 14 mm, one prosthetic platform.
Variants and codes
- Brand
- Implant Swiss — Two-piece implant system
- Family
- PACE
- Type
- New-generation bone-level implants
- Category
- Implants
- Diameters
- Ø3.5 · 4.0 · 4.5 · 5.0 · 5.5 · 6.0 · 7.0 mm
- Lengths
- 6 · 8 · 10 · 12 · 14 mm
- Connection
- 11° morse taper, internal hex Ø2.1
- Packaging
- PEEK tube
Characteristics
- 01
Single connection
One 11° morse-tapered internal hexagonal connection (hex Ø2.1) for the whole diameter range.
- 02
Thread design
Slender, gradually tapered thread aimed at strong primary stability during insertion; apical thread for anchorage.
- 03
Self-cutting edge
Two-directional cutting edges enable self-tapping and minimise stress.
- 04
Neck design
Sloping shoulder and narrow neck to minimise stress on the crestal bone and support soft tissue.
- 05
Thin body shape
Enables placement in smaller and undersized osteotomy sites.
- 06
Immediate protocol ready
Specifically designed for immediate placement and loading, subject to primary stability.
- 07
PEEK packaging
Each implant is housed in a PEEK tube with PEEK cap; biodegradable outer box.
Fixture codes
| Length | Ø3.5 | Ø4.0 | Ø4.5 | Ø5.0 | Ø5.5 | Ø6.0 | Ø7.0 |
|---|---|---|---|---|---|---|---|
| 6 mm | S-PBFR3506 | S-PBFR4006 | S-PBFR4506 | S-PBFR5006 | S-PBFR5506 | S-PBFR6006 | S-PBFR7006 |
| 8 mm | S-PBFR3508 | S-PBFR4008 | S-PBFR4508 | S-PBFR5008 | S-PBFR5508 | S-PBFR6008 | S-PBFR7008 |
| 10 mm | S-PBFR3510 | S-PBFR4010 | S-PBFR4510 | S-PBFR5010 | S-PBFR5510 | S-PBFR6010 | S-PBFR7010 |
| 12 mm | S-PBFR3512 | S-PBFR4012 | S-PBFR4512 | S-PBFR5012 | S-PBFR5512 | S-PBFR6012 | S-PBFR7012 |
| 14 mm | S-PBFR3514 | S-PBFR4014 | S-PBFR4514 | S-PBFR5014 | S-PBFR5514 | S-PBFR6014 | S-PBFR7014 |
PACE Catalogue, “Fixture and packaging”.
Single platform concept
One prosthetic platform across all implant diameters simplifies component selection: Ti-Base, anatomic and healing abutments are shared by the whole range.
PACE superstructures
Ti-Base abutments
Foundation for screw-retained CAD/CAM restorations.
- Ø4 · Ø5 mm
- GH 1 · 2 · 3 mm
- Crown 4 · 5 · 7 mm
- Straight · angled ≤ 20°
- Hex · non-hex

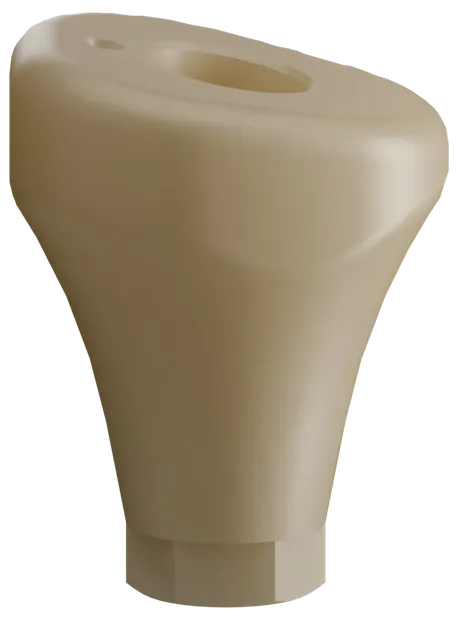

Anatomic abutments
Tooth-shaped single-piece abutments that work as healing abutment and scan body.
- Incisor · premolar · molar
- 12 designs
- GH 5 · 6 · 7 · 9 mm
- Titanium base, zirconia coating

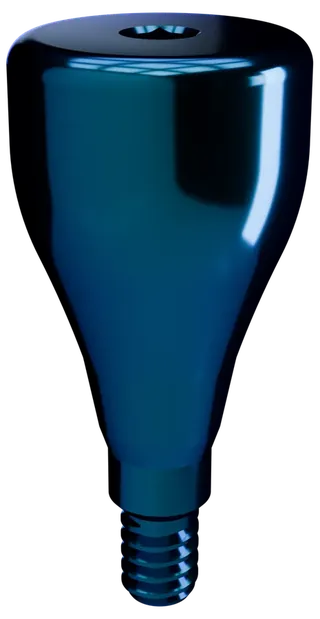

Healing abutments
Anodised, colour-coded healing abutments.
- Ø4.0 · 5.0 · 6.0 · 8.0 mm
- GH 3 · 4 · 5 · 6 mm
- Ti6Al4V ELI
PACE surgical kit

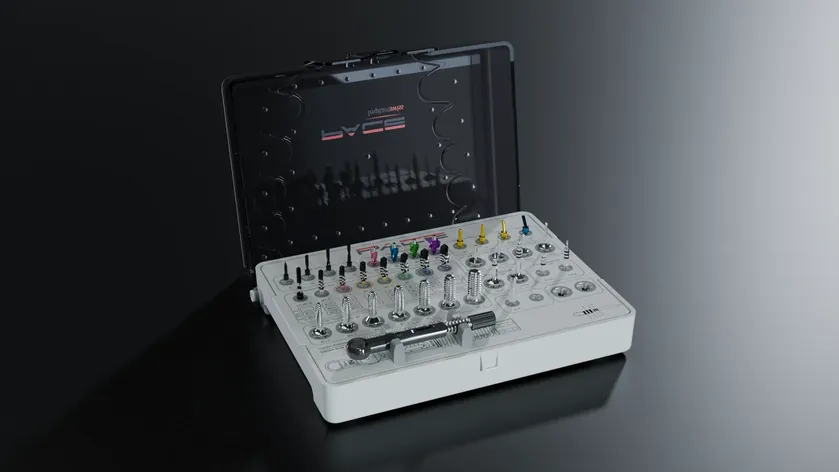

PACE surgical kit
Surgical drills, bone reamers, parallel pins, depth gauges, drivers and tapping tools with a holding key, in a grommet-free stainless-steel tray. DLC-coated drills; drilling chart by bone type and implant diameter.
Catalogs and documents
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- PACE Ti-Base, anatomic and healing abutmentsPACE superstructures as listed in the PACE catalogue; one platform for all PACE diameters.
