i-System Surgical kit: Surgical kit

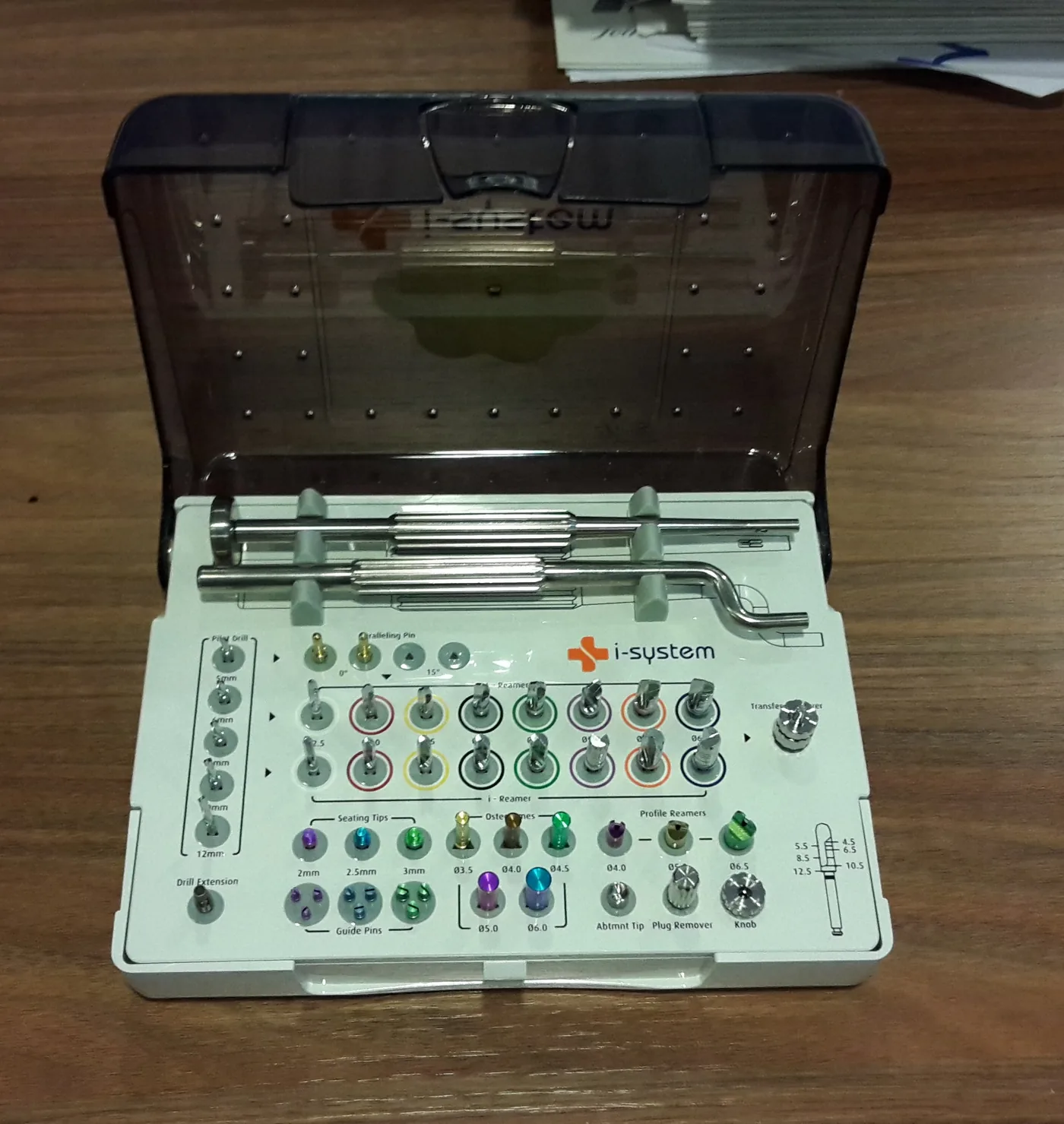

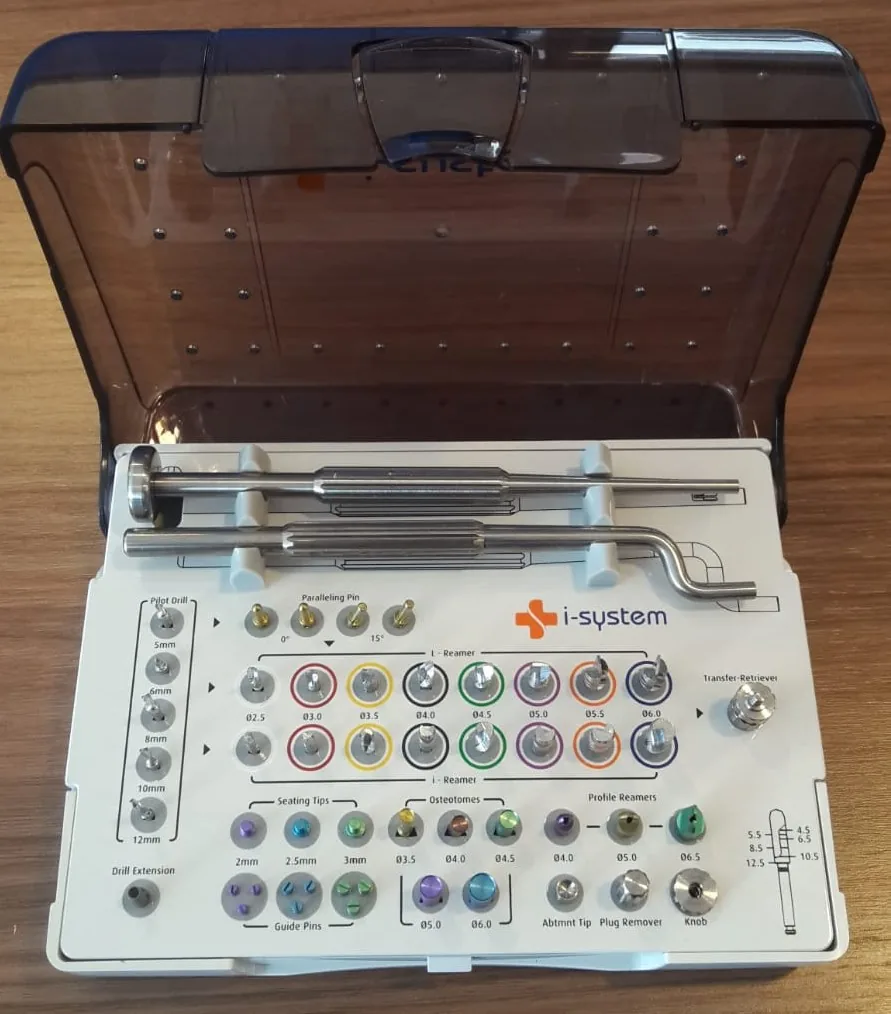

Depth-stop pilot drills, L-reamers and i-reamers, profile reamers, osteotomes, guide and parallel pins in one colour-coded tray, plus hand instruments.
Variants and codes
- Brand
- i-System — Short implant system
- Family
- Surgical kit
- Type
- Surgical kit and hand instruments
- Category
- Surgical kits
Protocol
- 01
Pilot drills
Ø2.0 mm with depth stop (5 – 12 mm) plus a non-depth-stop drill for deeper placement; 600 rpm with saline irrigation, below 50 rpm without cooling in low-density bone.
- 02
L-reamers
Two sharp edges; enlarge the osteotomy symmetrically at 50 rpm or less without irrigation; the blunt tip does not deepen the osteotomy.
- 03
i-reamers
Single sharp edge, sharp tip; used for selective deepening. The last reamer diameter matches the implant diameter.
- 04
Osteotomes and profile reamers
Bone condensation and shoulder profiling before seating.
- 05
Two-stage protocol
Cover plug and healing cap; the implant seated with the guide pin, angulation checked with parallel pins.
Kit contents
| Instrument | Sizes | Codes |
|---|---|---|
| Pilot drills Ø2.0 with depth stop | 5 · 6 · 8 · 10 · 12 mm | I-SPD-05 · 06 · 08 · 10 · 12 |
| L-reamers | Ø2.5 · 3.0 · 3.5 · 4.0 · 4.5 · 5.0 · 5.5 · 6.0 | I-SIRL-25 … 60 |
| i-reamers | Ø2.5 · 3.0 · 3.5 · 4.0 · 4.5 · 5.0 · 5.5 · 6.0 | I-SIR-25 … 60 |
| Profile reamers | Ø4.0 · 5.0 · 6.5 | I-SSR-40 · 50 · 65 |
| Osteotomes | Ø3.5 · 4.0 · 4.5 · 5.0 | I-SOST-35 · 40 · 45 · 50 |
| Guide pins | 2.0 · 2.5 · 3.0 | I-SGP-20 · 25 · 30 |
| Paralleling pins | straight · angled 15° | I-SPP-0 · I-SPP-15 |
| Seating tips | 2.0 · 2.5 · 3.0 well | I-SST-20 · 25 · 30 |
i-system catalog 06.2021, surgical protocol pp. 38–49 and index p. 61.
| Instrument | Note |
|---|---|

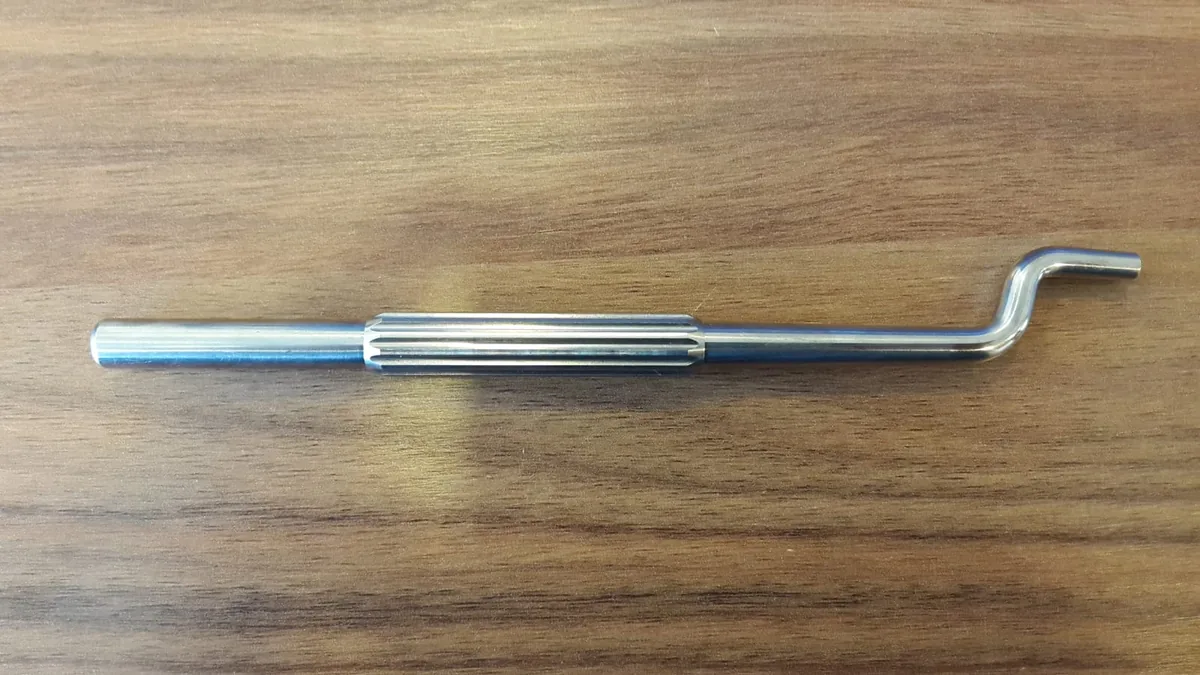

| Straight and curved handles | for reamers and osteotomes |
| Abutment handle | carrying and seating abutments |
| Dental hammer · universal inserter / retriever | seating with gentle tapping |
| Knob · abutment tip · drill extension · plug remover | — |
| Dental scissors · mandibular and maxillary extraction forceps | — |
Which reamer for which implant
The last reamer diameter matches the implant diameter (colour-coded); the well size does not change the drilling sequence.
Catalogs and documents
Documented compatibility
Only combinations stated in the product documentation are listed here; related products of the same brand are not assumed to be compatible.
- i-System implants →Reamers colour-coded to the implant diameters Ø3.0 – Ø6.0 (catalog surgical steps chart).
