 Implantswiss case by Dr. Darko Veljanovsk

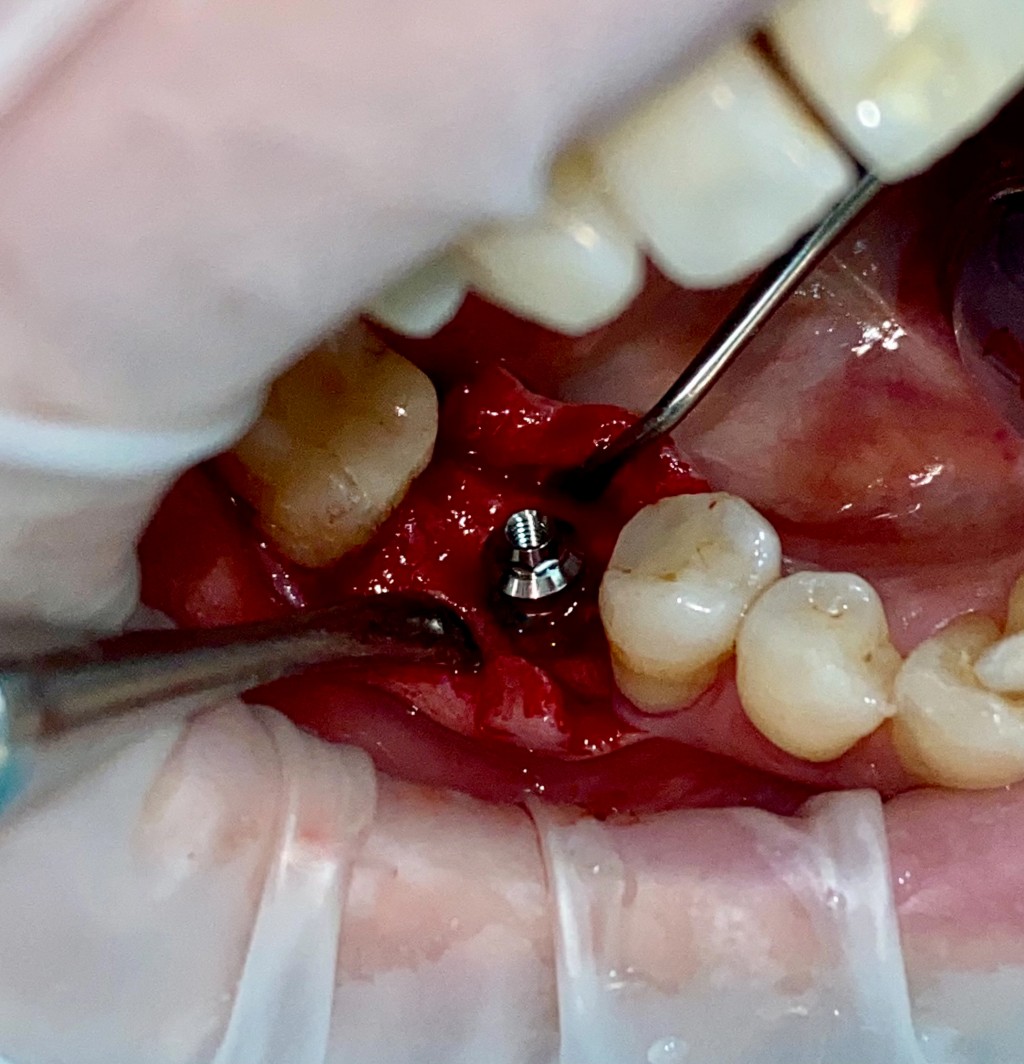

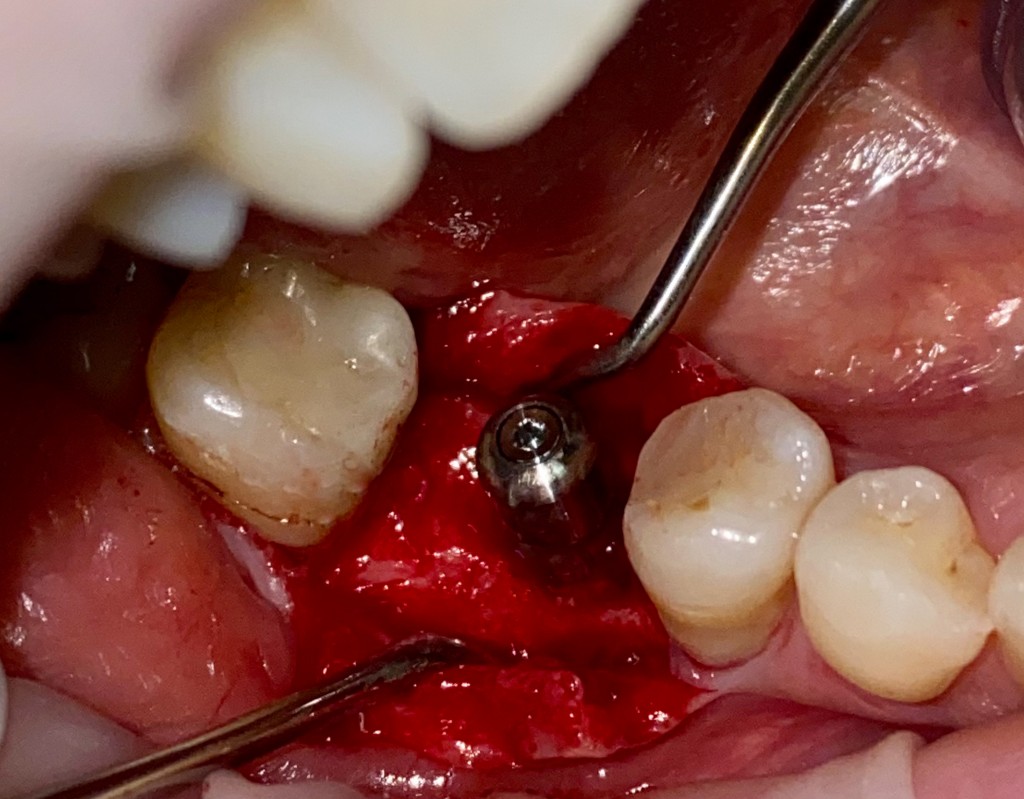

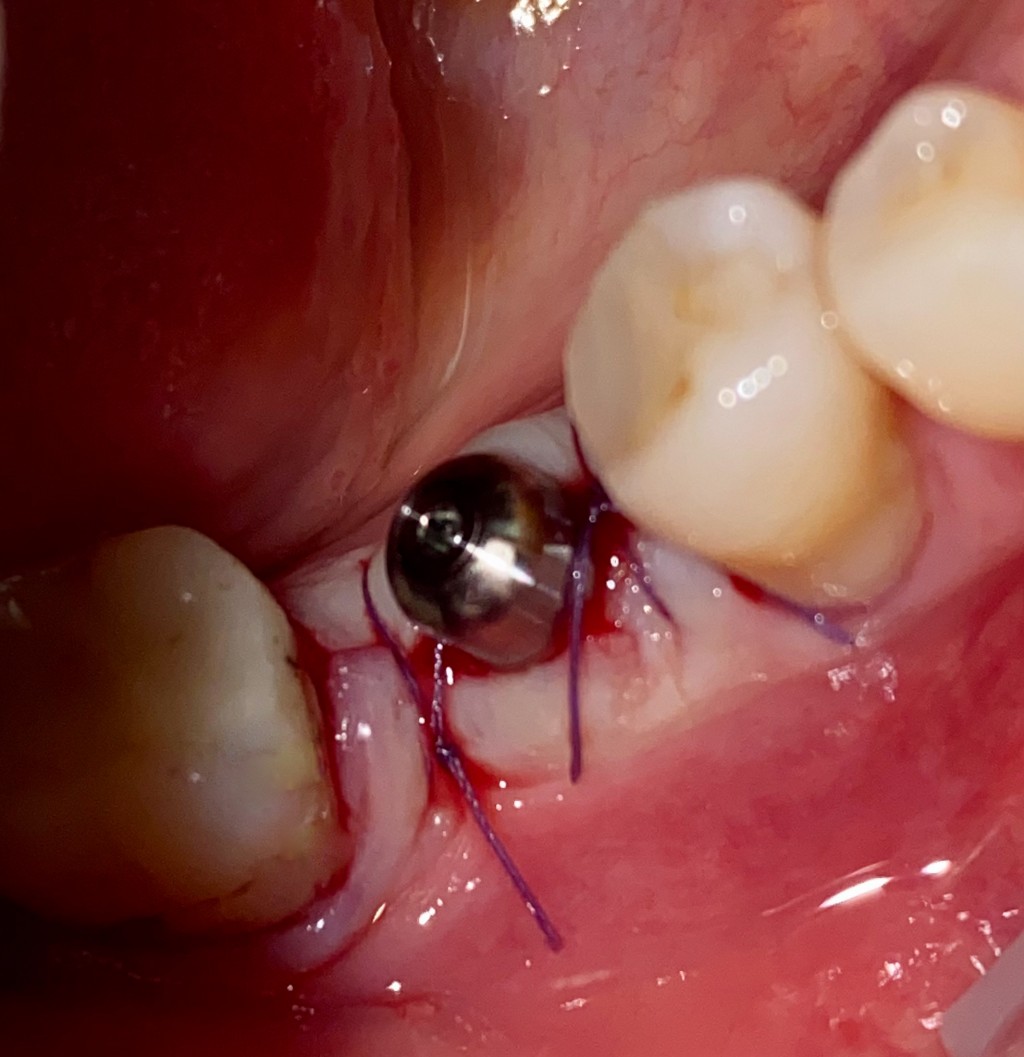

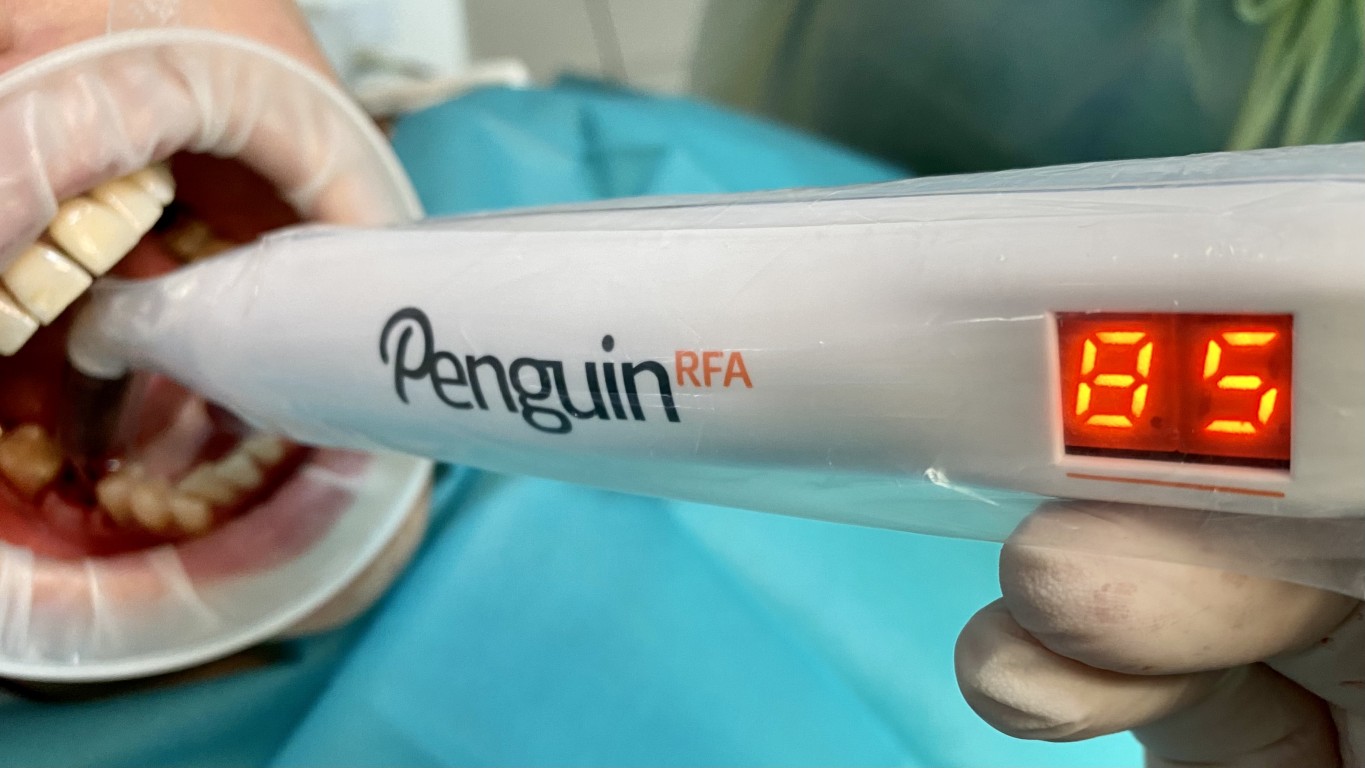

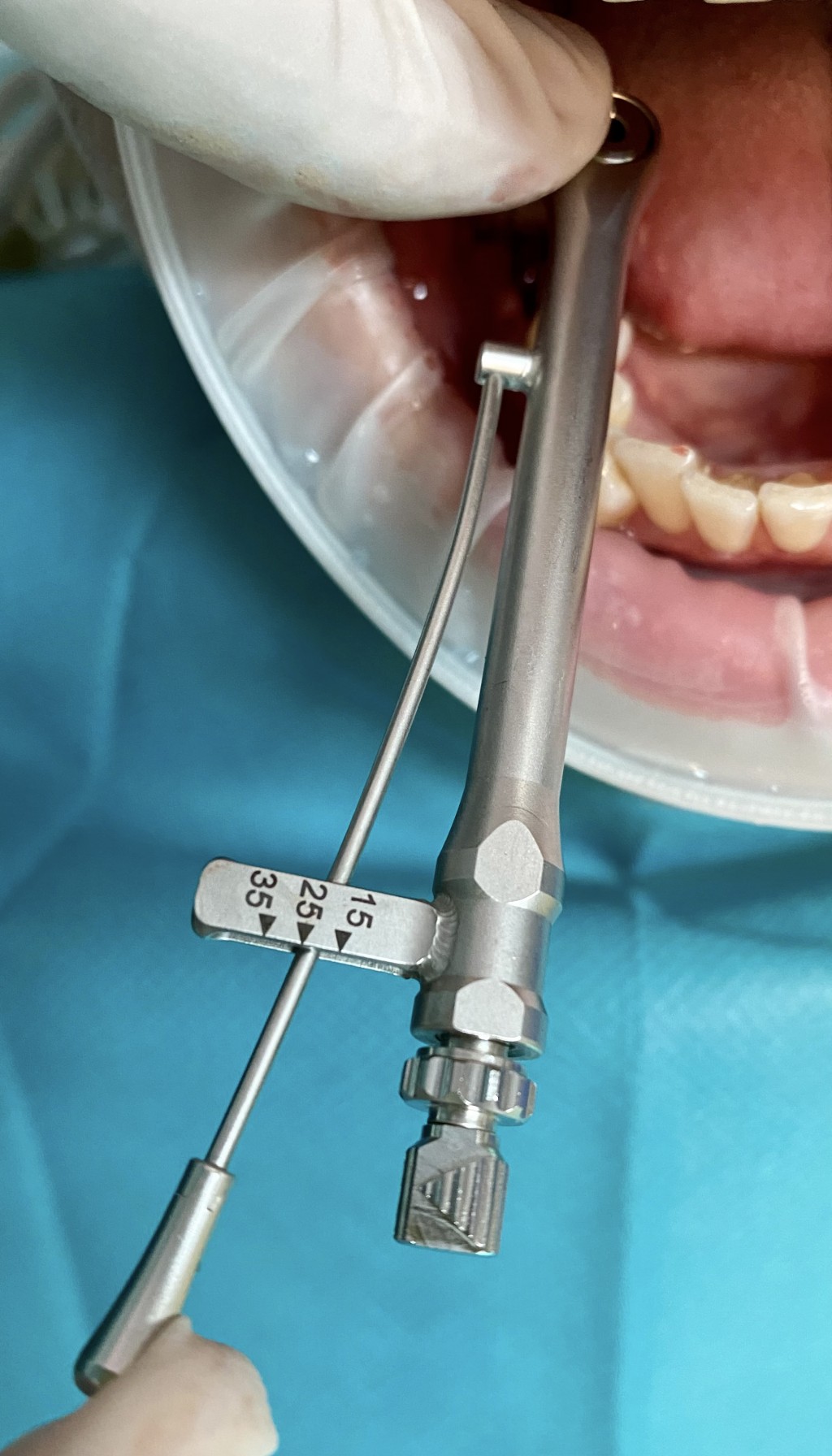

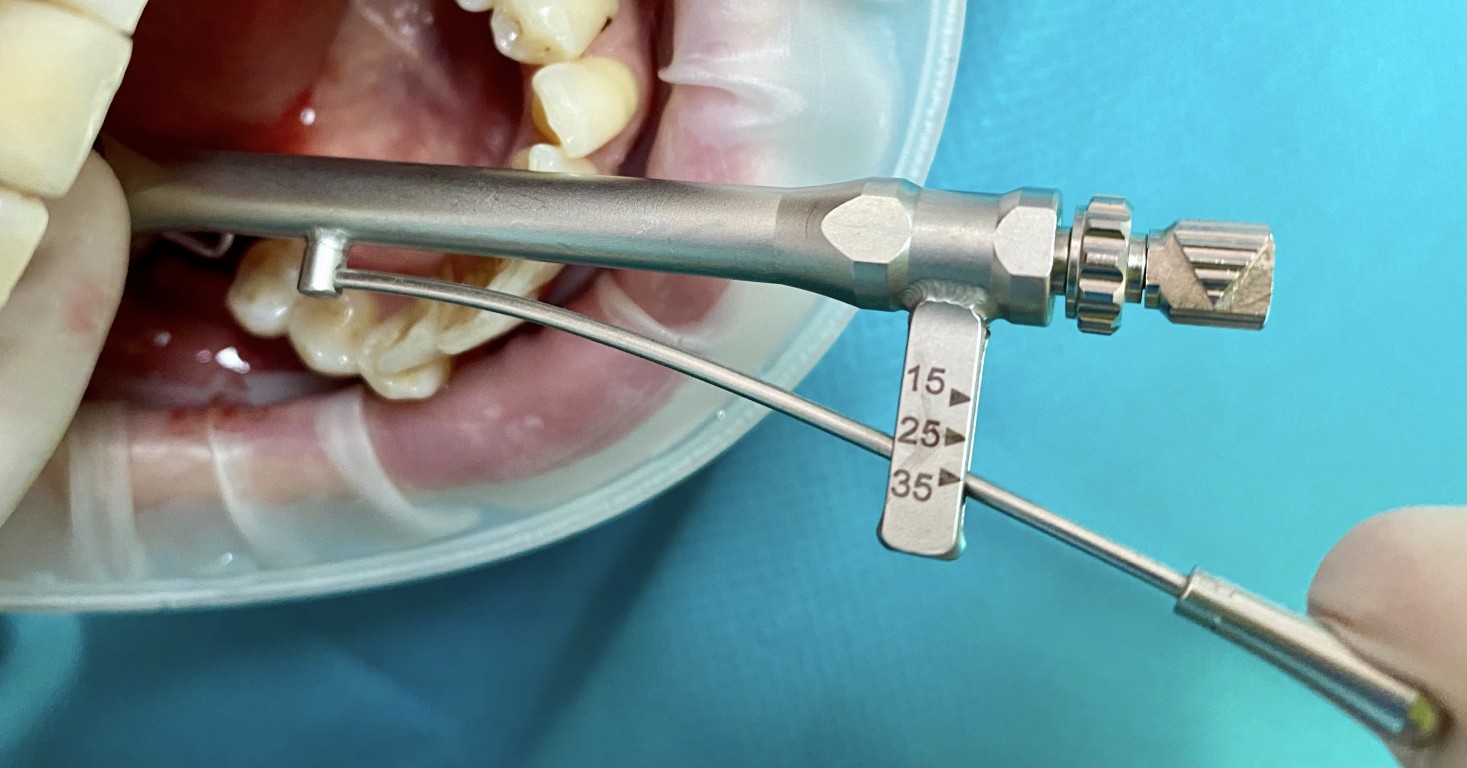

A healthy female 44 years old patient presented for implant placement in region 46. The tooth 46 was extracted 4 months ago. The measured vertical soft tissue thickness was 4 mm. A 4.30 X 10 mm Implantswiss bone-level implant was places with high primary stabilty (ISQ > 80) and peak insertion toque of 35 NCm. The Octa abutment system was used. It is stay-in ("One abutment-one time") abutment system. An octa abutment with 2 mm high collar was torqued to the implant with the recommended torque of 25 NCm. This enables further tissue-level impressions without disturbing the peri-implant mucosal seal. A cover cap was placed and hand-tightened. Absorbable sutures in a double-sling manner were applied. The final screw-retained restoration is planned after the 2 months healing period.
